This machine can be used in the field or lab for the following test types:
· Rock deformation
· Uniaxial compression
· Tensile (splitting) strength
· Point load strength
· Direct shear of intact or irregular rock
· Direct shear on structural planes and weak rock
· Soil and gravelly soil shear strength
Technical Specifications
Item | Specification |
Overall dimensions | 770 mm (L) × 430 mm (W) × 670 mm (H) |
Total weight | 300 kg (incl. 2 hand pumps and accessories) |
Vertical jack | Max force: 500 kN (50 tons), stroke: 60 mm |
Horizontal jack | Max force: 500 kN (50 tons), stroke: 60 mm |
Sample sizes: | |
– Rock deformation & compression | Ø50–56 mm or 50×50 mm; Height: 100–112 mm |
– Tensile test | Ø50–56 mm; Height: 50–56 mm |
– Point load strength | 40–60 mm in L/W/H; six faces as parallel as possible |
– Direct shear (intact rock) | Ø50, 56, 71.5, 90 mm cylinders; 50×50 mm square prism |
– Structural plane/weak rock | L ≤ 160 mm, W ≤ 140 mm, H ≤ 160 mm |
– Soil direct shear | Ø90 mm, Height: 30 mm |
– Gravelly soil shear test | Gravel ≤ 2.0 cm; Shear box: 160×140×160 mm (V=35 cm³) |
Test Methods

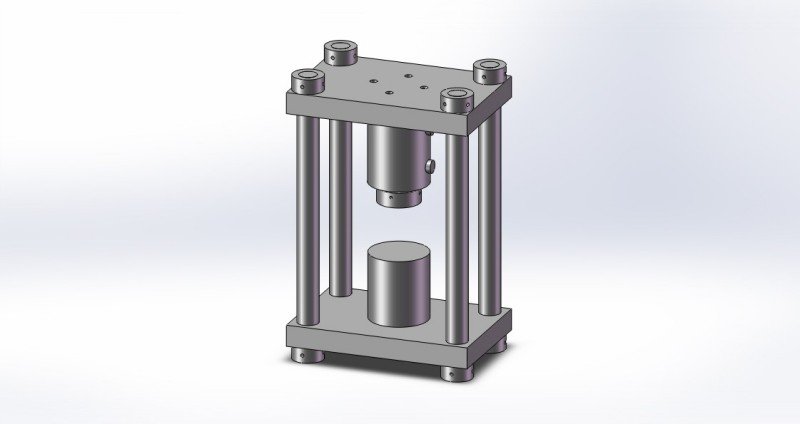

Rock Deformation Test (including compressive strength test)
· Sample: Φ50 mm or 50×50 mm square prism; height 100–112 mm.
· Install the sample between two bearing plates; align axes and gently apply force.
· Use a dial indicator mounted on the compression fixture to measure axial deformation.
· Use vertical jack for loading.
· The test ends when the specimen cracks or reaches failure.

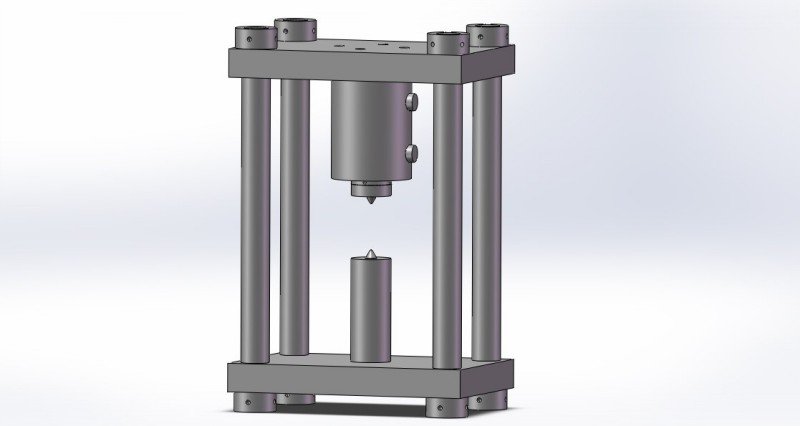

Point Load Strength Test
· Sample: small-sized irregular sample with approximately parallel surfaces (40–60 mm in size).
· Install sample on the point load fixture; adjust upper cone tip using handle to ensure both ends contact the sample surface.
· Apply vertical load via hand pump until sample breaks.
· Record peak load value.
· The point load strength is calculated as:
· Is = P / De²
· Where:
· Is – point load strength (MPa),
· P – failure load (N),
· De – equivalent diameter of the rock specimen (mm), calculated as:
· De = √(4A/π)
· (A – minimum cross-sectional area of sample, mm²)

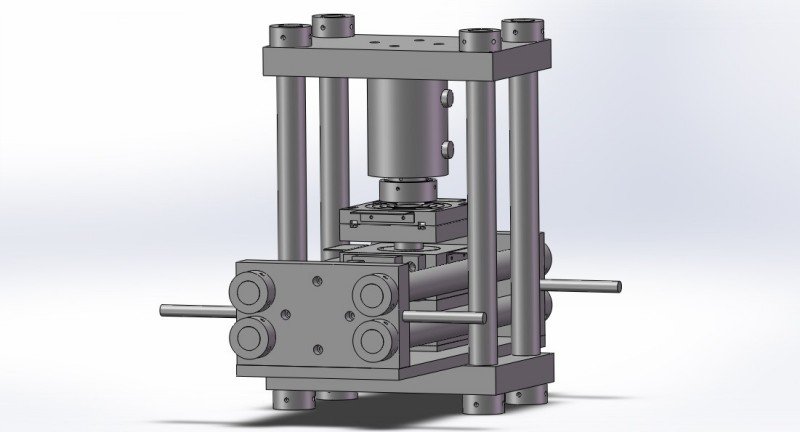

Direct Shear Test for Intact Rock
· Sample: Ø50, 56, 71.5, 90 mm cylinder or 50×50 mm square prism.
· Split the sample into two and place in the direct shear box.
· Apply vertical load with vertical jack to simulate normal stress.
· Then apply horizontal load with horizontal jack to shear the sample.
· Record shear force corresponding to failure.
![]()

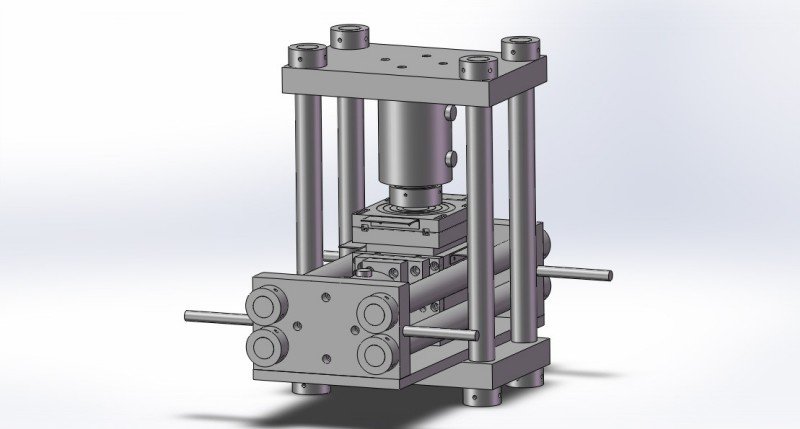

Direct Shear Test on Structural Planes and Weak Rock
· Sample: irregular rock block with natural structural plane or artificial joint surface.
· Place in large direct shear box.
· Apply vertical force first, then shear horizontally until failure.
· Record peak shear load.
![]()
![]()
Tensile Strength Test
· Sample: Ø50–56 mm; height: 50–56 mm.
· Place sample flat between semi-circular jaws of the splitting fixture.
· Apply vertical load until sample splits.
· Calculate tensile strength using:
· σt = 2P / (πDL)
· Where:
· σt – tensile strength (MPa),
· P – failure load (N),
· D – diameter (mm),
· L – height (mm)
![]()
Soil Direct Shear Test
· Sample: Ø90 mm core sample or undisturbed soil trimmed to fit the fixture.
· Install in the direct shear box; place porous plates and load plate.
· Apply vertical force for normal stress.
· Apply horizontal shear load.
· Use two dial indicators to measure horizontal displacement and vertical deformation.
· Record shear force at failure.
Direct Shear Test on Gravelly Soil
· Sample: natural or remolded gravelly soil (gravel ≤ 2.0 cm).
· Install into large shear box (160×140×160 mm; V = 35 cm³).
· Same procedure as 4.6, but for coarser soils.
· Suitable for field conditions with high gravel content.
Configuration List
No. | Name | Quantity | Diagram |
1 | Longitudinal Loading Frame | 1 | |
2 | Transverse Loading Frame | 1 | |

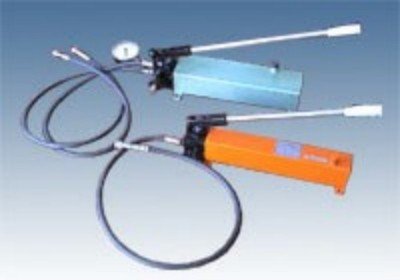

3 | Manual Loading Pump | 2 |
|
4 | Spherical Pressure Plate | 1 |
|
5 | Lower Pressure Plate | 1 |
|
6 | Guide Rail | 1 |
|
7 | Rock Direct Shear Frame | 1 |
|
8 | Transition Sleeve for Rock Direct Shear Test, Φ50 | 2 |
|
9 | Transition Sleeve for Rock Direct Shear Test, Φ56 | 2 | |
10 | Transition Sleeve for Rock Direct Shear Test, Φ71.5 | 2 | |
11 | Transition Sleeve for Rock Direct Shear Test, Φ90 | 2 | |
12 | Transition Sleeve for Rock Direct Shear Test, 50×50 | 2 | |
13 | Lower Pressure Block for Rock Direct Shear Test, Φ50×55 | 1 |
|
14 | Lower Pressure Block for Rock Direct Shear Test, Φ56×52 | 1 | |
15 | Lower Pressure Block for Rock Direct Shear Test, Φ71.5×39 | 1 | |
16 | Lower Pressure Block for Rock Direct Shear Test, Φ90×30 | 1 | |
17 | Lower Pressure Block for Rock Direct Shear Test, 50×50×55 | 1 | |
18 | Upper Pressure Block for Rock Direct Shear Test, Φ50×77 | 1 | |
19 | Upper Pressure Block for Rock Direct Shear Test, Φ56×74 | 1 | |
20 | Upper Pressure Block for Rock Direct Shear Test, Φ71.5×66 | 1 | |
21 | Upper Pressure Block for Rock Direct Shear Test, Φ90×57 | 1 | |
22 | Upper Pressure Block for Rock Direct Shear Test, 50×50×77 | 1 | |
23 | Direct Shear Frame for Structural Surface, Soft Rock, and Gravel Soil | 1 |
|
24 | Pressure Plate for Direct Shear Test on Structural Surface, Soft Rock, and Gravel Soil | 1 |
|
25 | Upper Indenter for Point Load Strength Test | 1 |
|
26 | Lower Indenter for Point Load Strength Test | 1 | |
27 | Digital Pressure Gauge | 2 | (N/A) |
28 | Dial Gauge and Magnetic Base | 2 | (N/A) |
29 | Axial Displacement Support Plate | 1 | (N/A) |
30 | Heavy-Duty Magnet with Pull Ring | 1 | (N/A) |
